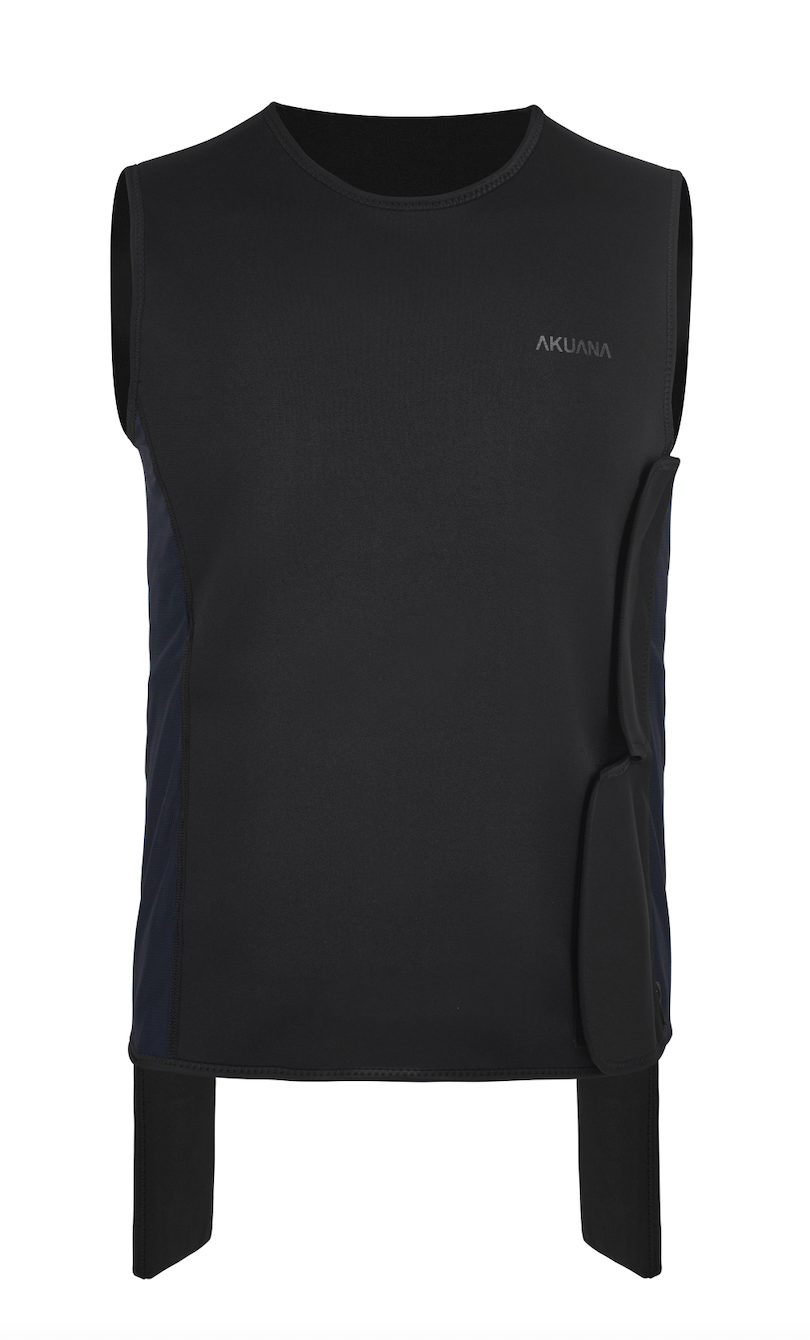

AKUANA Opah DS Heating Vest

The AKUANA team has developed a series of reliable and practical heated base layers designed specifically for divers. When worn under a wetsuit, the system warms the water between the body and the wetsuit, providing long-lasting thermal protection and significantly reducing the risk of hypothermia. With the latest micro-electronics technology, we are making diving easier and safer, while improving the interaction between equipment and diver—offering a simpler, more intuitive user experience unlike anything before. The Opah X heated vest offers two battery-placement configurations. The first option uses internal batteries that contact the body. Although this design may cause slight discomfort, it avoids the need to create holes in the heated garment. This version uses LiFePO₄ (LFP) batteries, which are extremely safe and stable, although their capacity is lower than NCM lithium batteries. The second option uses a high-capacity external NCM lithium battery mounted outside the wetsuit. For safety, the cable passes through the wetsuit through the neck zipper using an extension cable, avoiding damage to the suit. The NCM battery is more comfortable to wear and has larger capacity, longer operating time. Note: The internal-battery version is for wetsuit use only and must not be used with a drysuit.

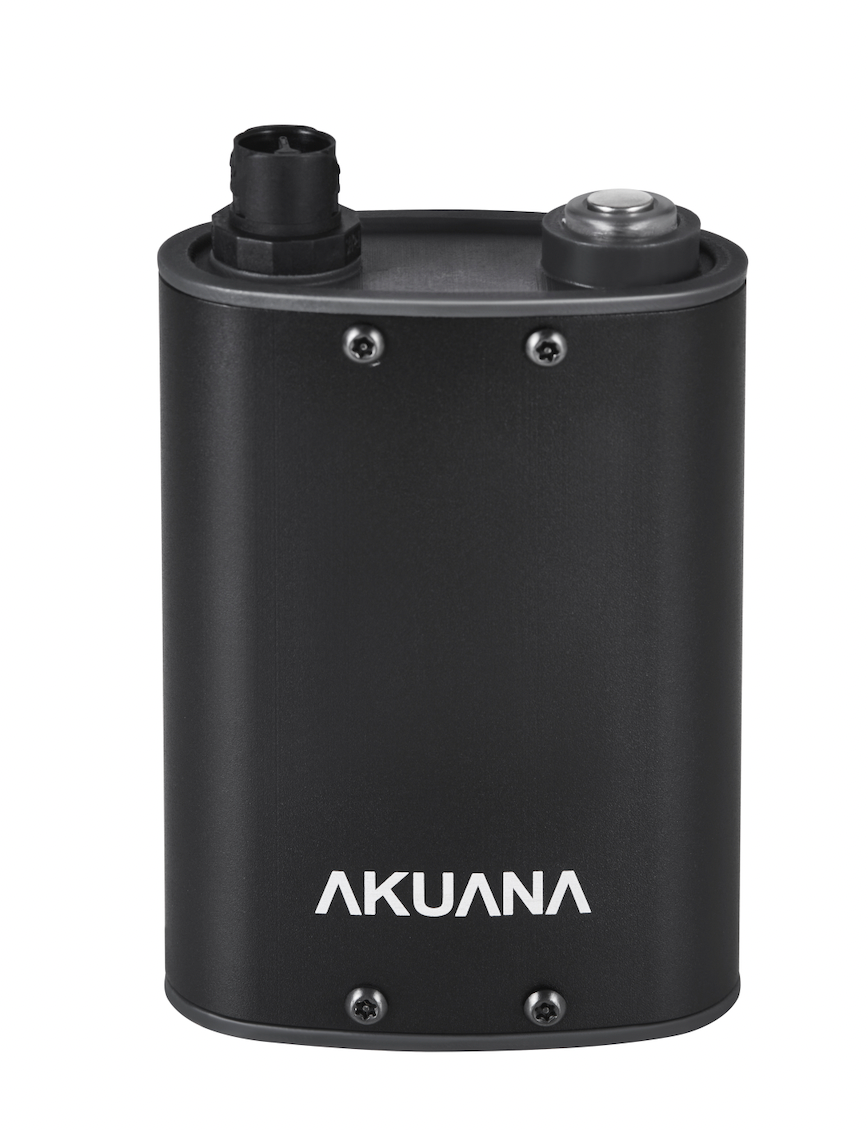

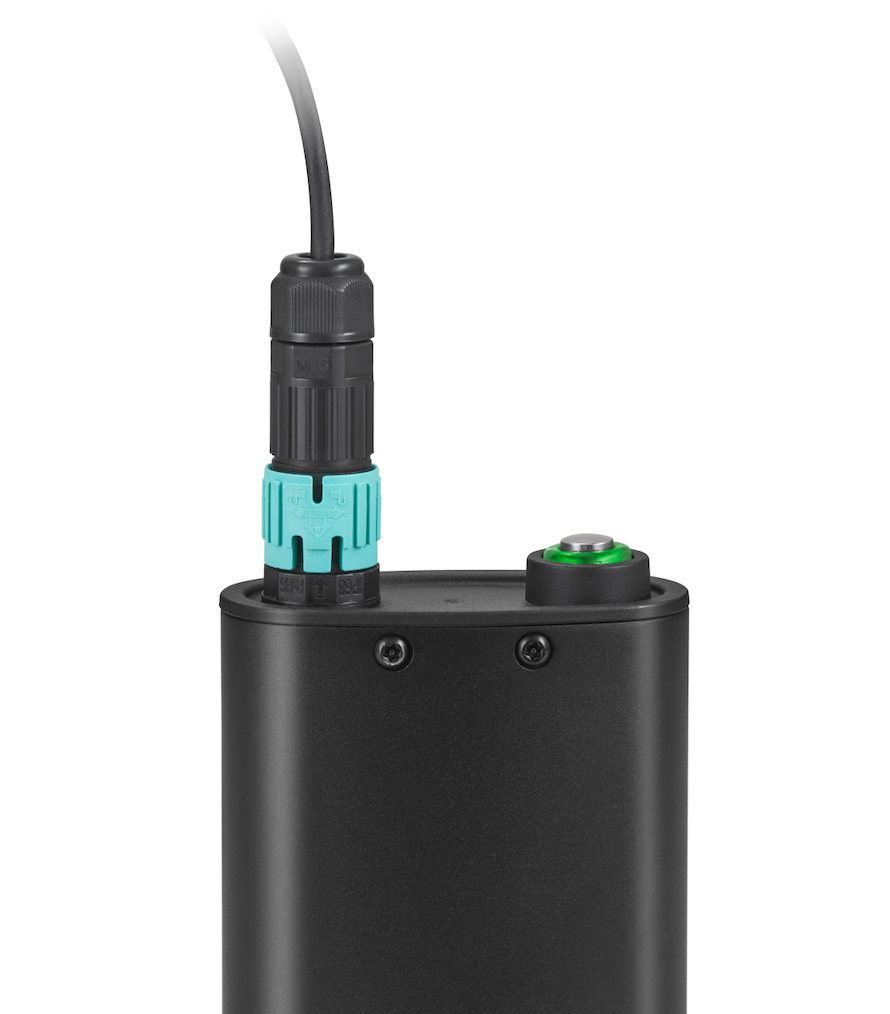

External battery configuration (for both drysuits and wetsuits) Includes cable and port for drysuit, wetsuit extension cables, and an external battery pouch, Two heat levels (60W / 30W) High-capacity NCM lithium batteries Recreational version: rectangular battery, waterproof to 50 m Technical version: cylindrical battery, waterproof to 100 m Battery can be connected/disconnected from outside the drysuit Battery switch on/off button Operating time: 1.5 / 3 hours; additional battery packs available for multi-dive days Neoprene construction with hook-and-loop adjustments for a wide sizing range Additional insulation layer between battery and body Lithium battery capacity: 99Whx1 Remote switch with adjustable heat settings Overheat protection system High-stretch neoprene Specifications: Operating depth: 50 m / 100 m (depending on battery type) Maximum temperature: 45°C Sizes: XS / S / M / L / XL / XXL Material: Neoprene, Including： Manuals Controller Battery,  Certification: CE,

What’s in the box

·       Opah DS drysuit heating vest $998

·       Wrist controller

·       LiFePO4 Lithum battery

·       Charger

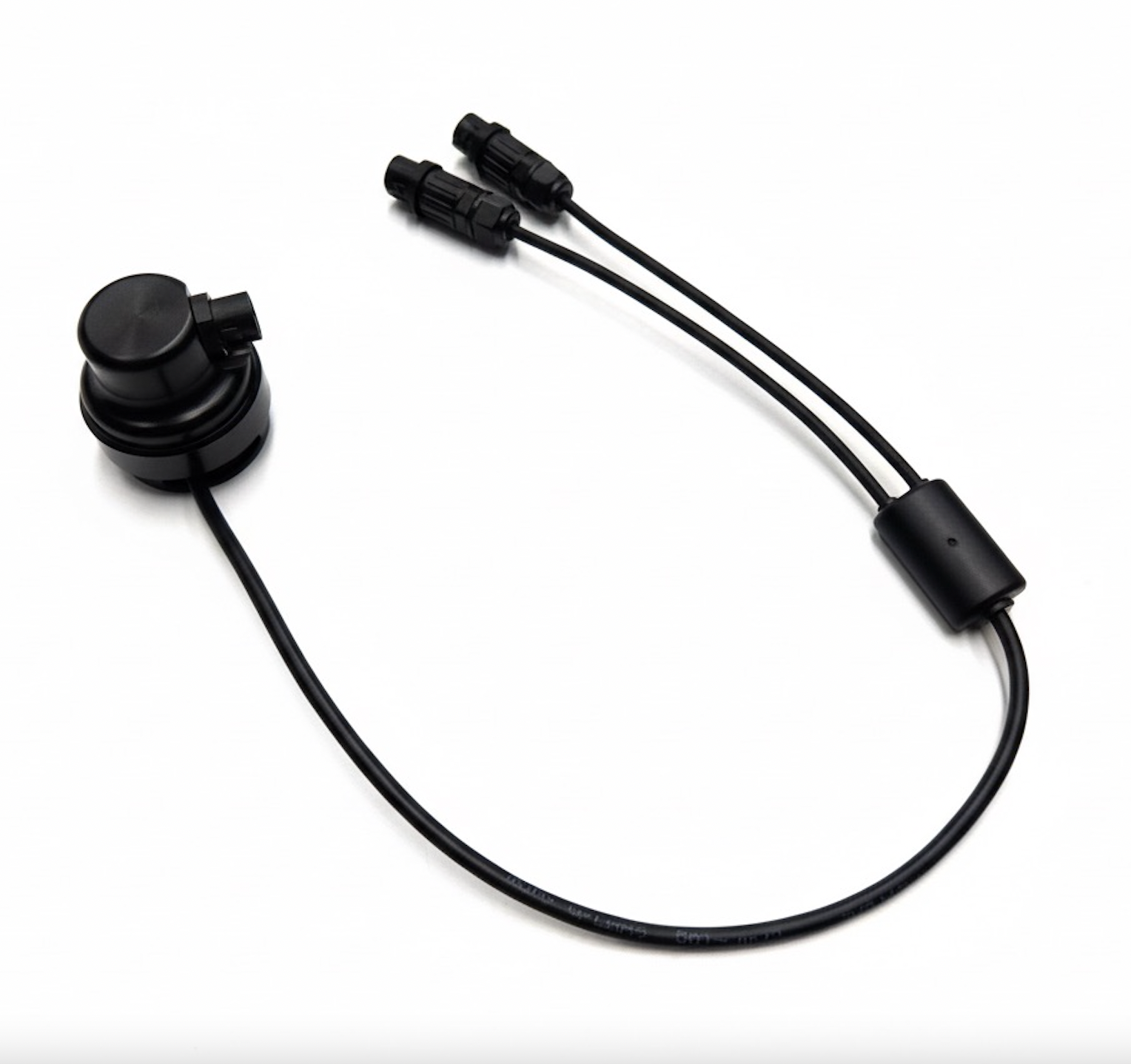

·       Dry suit pass through cables

How to video

https://akuanarepo.oss-cn-shenzhen.aliyuncs.com/video/User%20Guide%20LFP%20v0413.mp4

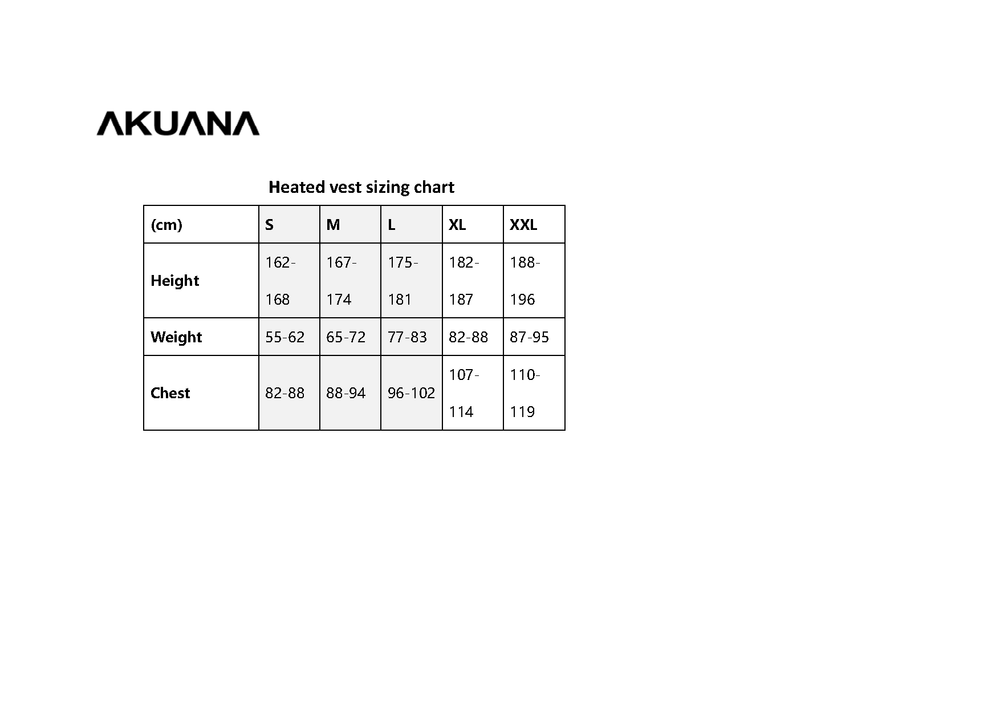

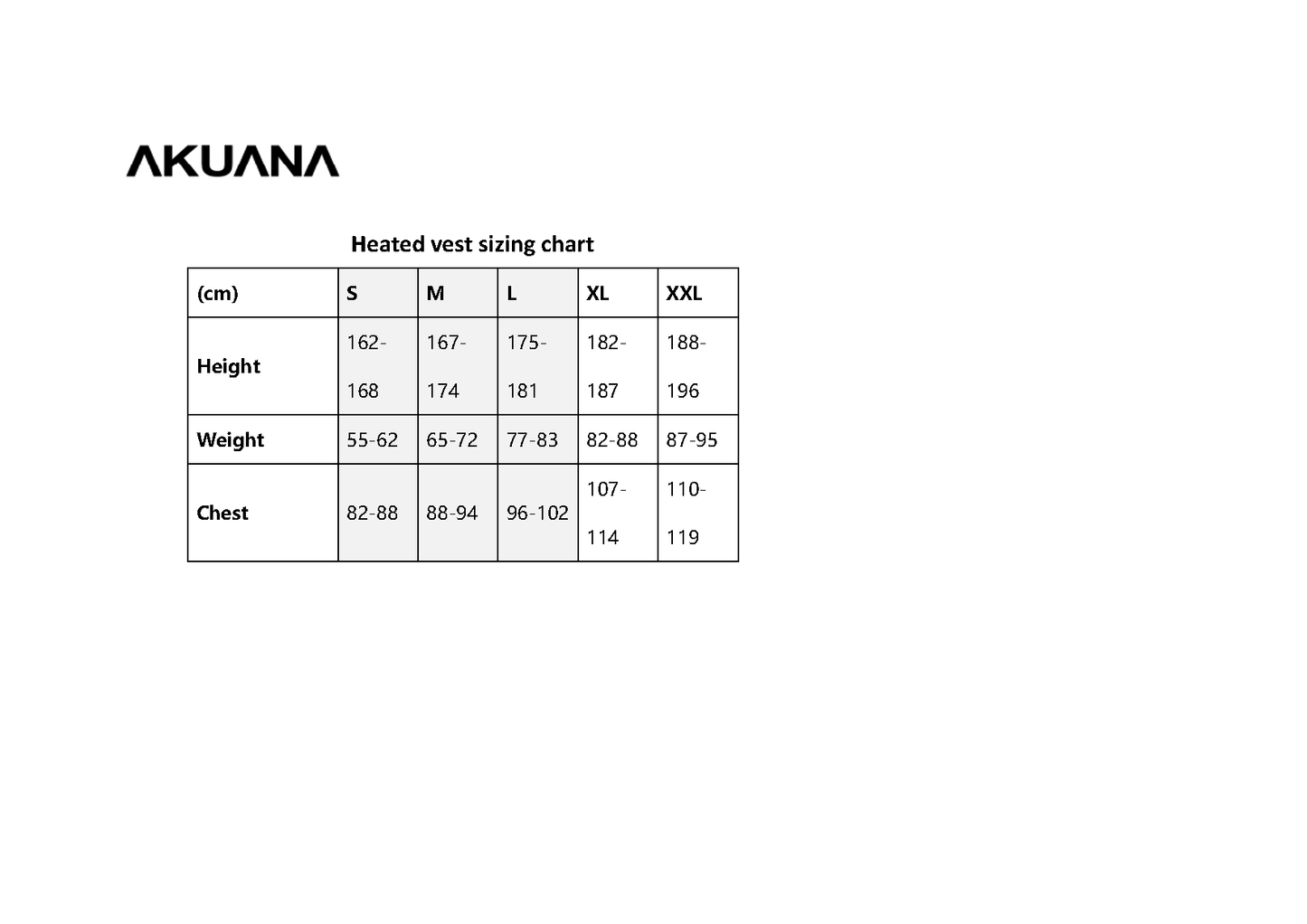

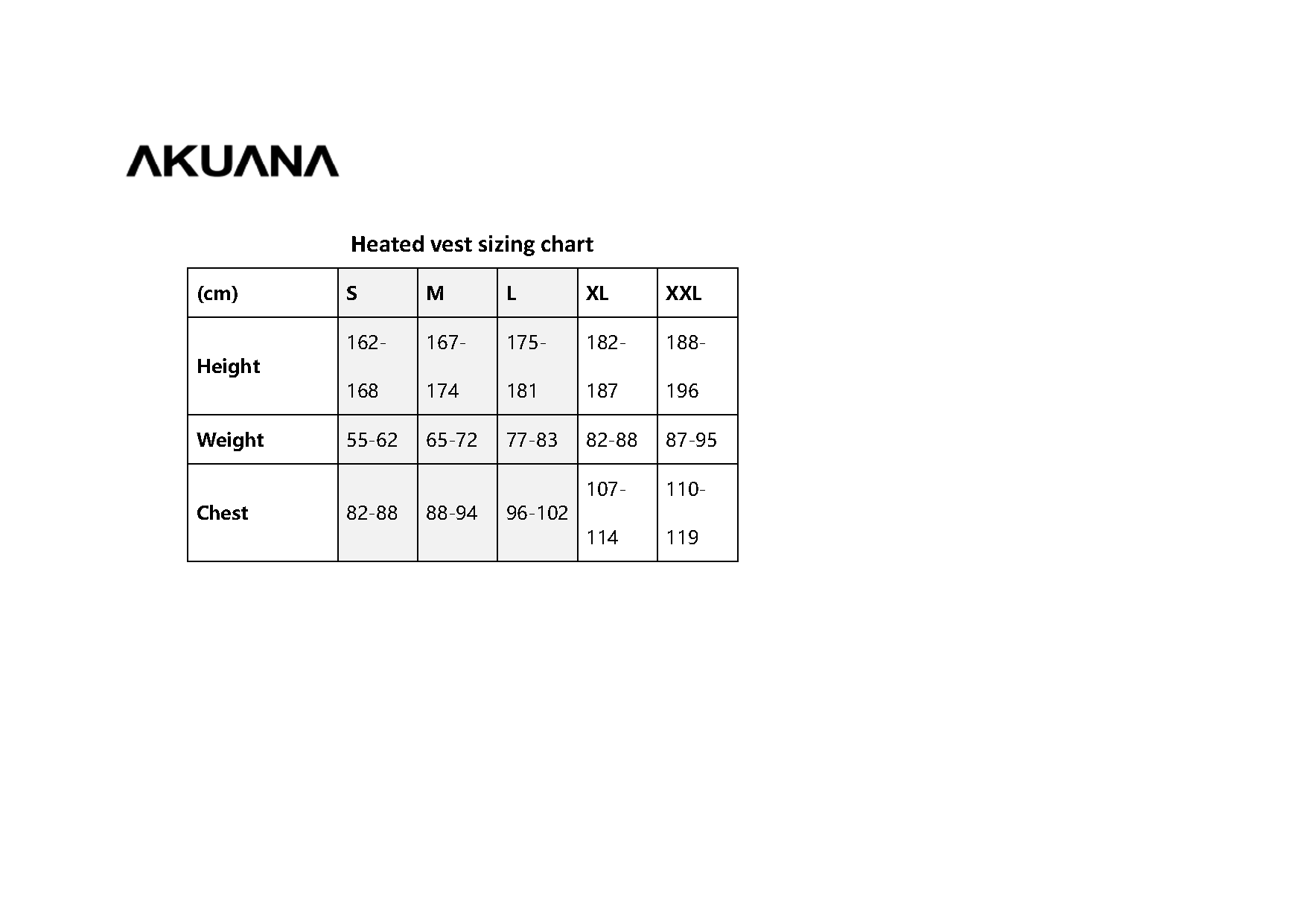

 Size chart: refer to https://akuana.com.au/
