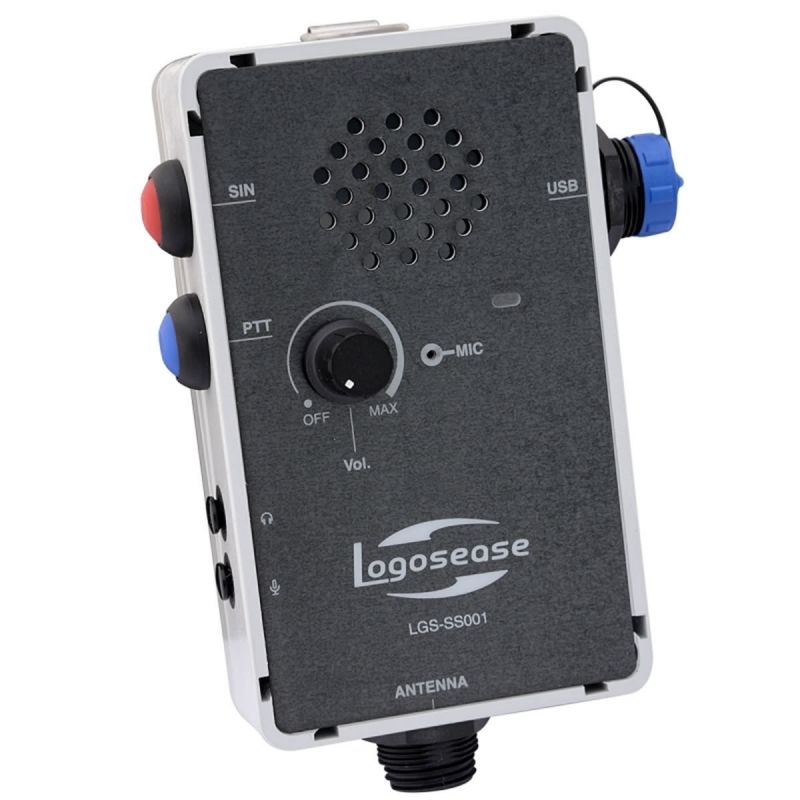

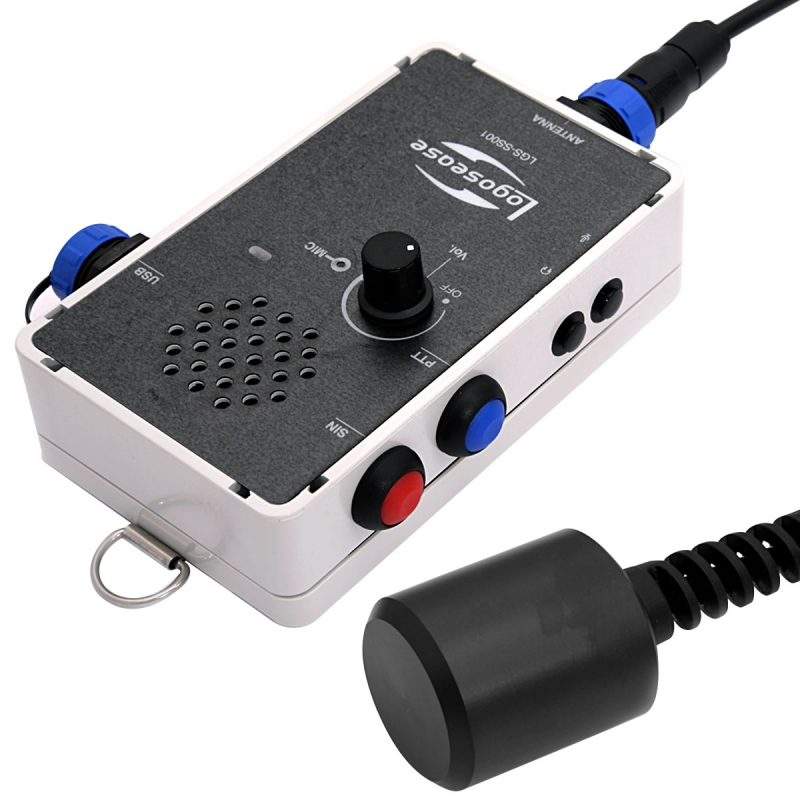

Logosease Surface Station LGS-SS01

Size

125mm x 75mm x 35mm

Weight

Approx. 285g

Waterproof

Practical waterproof

Temperature in use

0~40^oC

Microphone

Capacitor microphone

Speaker

Dynamic type speaker

Channels

1ch

Frequencies

(Ultrasonic wave) 32kHz USB
(band range) 4kHz SSB-AM basis

Antenna

Cylindrical ceramic piezoelectric element (*cable length 1Om)

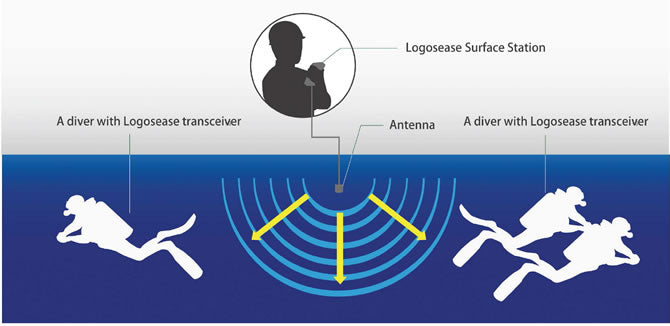

Max.transmisson range

Max.150m
(*Under the condition of antenna of a Logosease on the diver facing to the antenna of Surface Station in the cl ear quiet sea)

Directivity

No directivity around the cylinder of the antenna, but not to the vertical direction

LED

In charging, red is ON./ When charging is completed, LED will be OFF
Changes colors/ LED ON patterns in each mode

Power

Volume with switch

PTI

PTI (push to talk) button

Sine wave

Button to push (sine wave releasing button in emergency)

External terminal

MIC jack (dia. 3.Smm jack impedance matching 2.2 ohm or less)
EAR jack (dia. 3.Smm jack /stereo impedance matching 16 ohm/32 ohm)

Battery charging

Approx. 6 hours at 500mAh

Rating

Li-ion battery 2210mAh

How to charge

By USB

Working hours

Approx. 12 hours assuming 10% of the time is used for transmitting

Maintenance

Li-ion battery should be exchanged by the manufacturer

Accessories

USB cable
