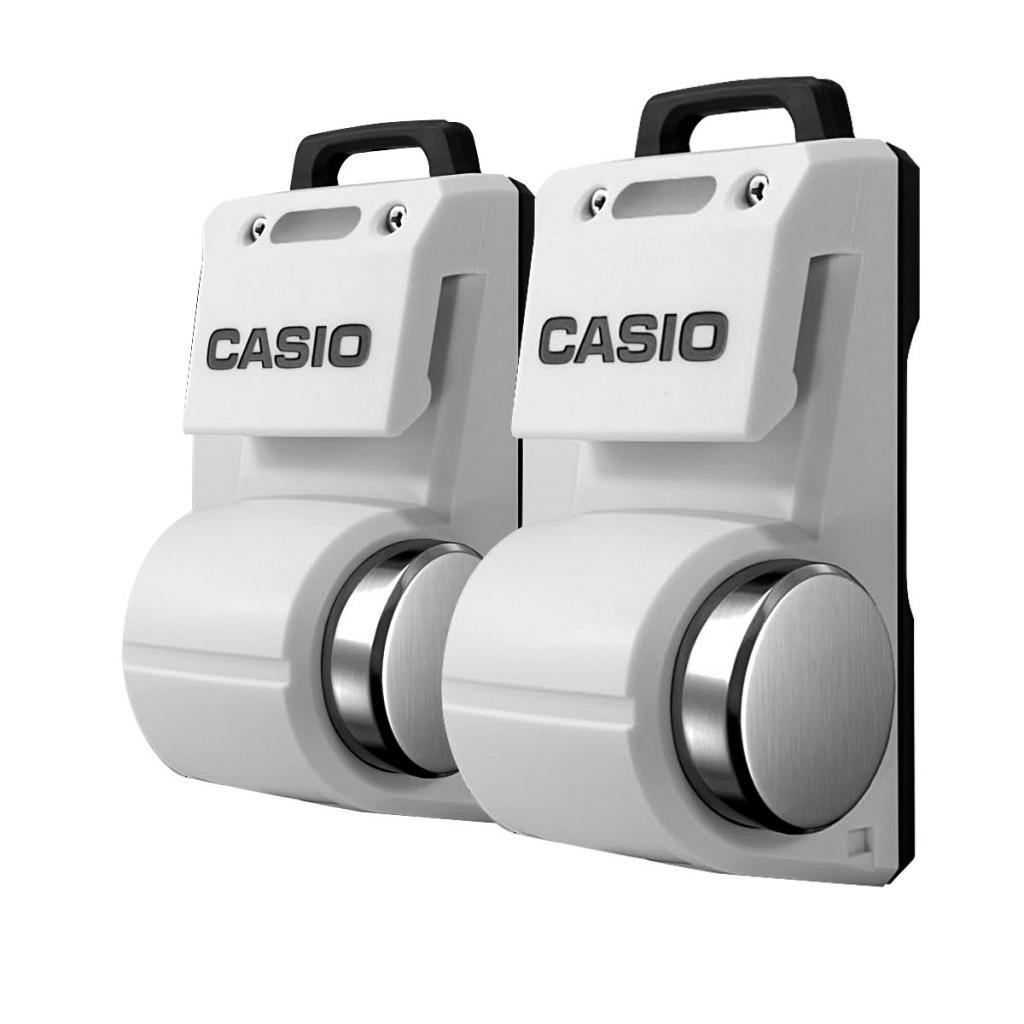

Logosease LGS-RG005BA Underwater Comm's

Colors:

Mat white

Size:

89.0mm x 41.0mm x 44.8mm

Weight:

Approx. 107g

Max.water pressure:

At 42m depth

Temperature in use:

0°C- 40°C

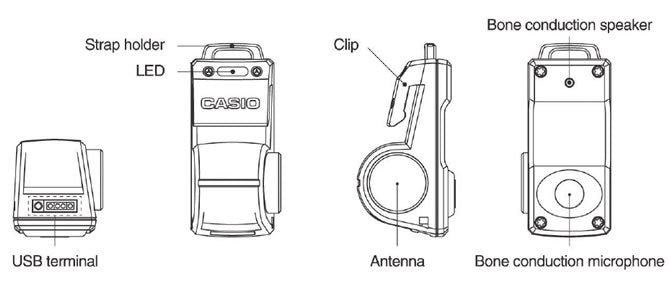

Microphone:

Bone conduction microphone

Speaker:

Magnetic-type bone conduction speaker

Channels:

1ch (Channel A)

Frequencies:

(ultrasound wave) Channel A: 32KHz USB
(band frequency) 4KHz,SSB-AM basis

Antenna:

Ceramic piezoelectric element

Transmission range:

50 - 100m(Channel A)
*face-to-face position in clear and calm sea

Directionality:

The power of communication will be max. when front side of the antenna of each divers faces each other. It will be min. when they are facing opposite ways.

Turning the unit ON
(Display battery remaining):

Fully charged: Green blinking
Left enough for 1 more dive: Blue blinking
Need charging: Red blinking

Transmitting mode:

LED light in pink

Receiving mode:

Channel A: Yellow blinking

LED while charging:

Red LED is ON

LED after charging:

LED is OFF

Acceleration sensor:

Tap one time in receiving mode, transmitting mode will start
Tap one time in transmitting mode, transmitting will end. (receiving mode starts)
* VOX function (hands-free) can start transmitting mode too.
* With no sound for 3-sec., transmitting mode will change to receiving mode.

ON:

Turns on by detecting water

OFF:

Automatically turns off in 1 minute after removed from water

Battery charging:

Required about 2 hours at 500mAh

Rating:

560mAh with Li-ion battery

Charging method:

by USB

Duration:

About 3 hours (assuming 10% of the time is used for transmitting)

Maintenance:

The manufacturer replaces the Li-ion battery

Accessories:

Battery charger x 1, USB cable x 1, Strap x 1, Speech training sheet x 1

Optional extras:

Logosease Voice half mask
