AV-2 EVOLUTION

AV-2 Evolution Scooter - Li Ion Battery (NSN: 4220-66-158-6259) Want to out fish your mates, explore like never before, have confidence in your unit that you can get back to base/ shore. This is the ultimate diving experience.  Military grade, japanese reliability. built by Nippon Sensuiki Co. LTD (Apollo Scuba)

Control or Battery Life indicator

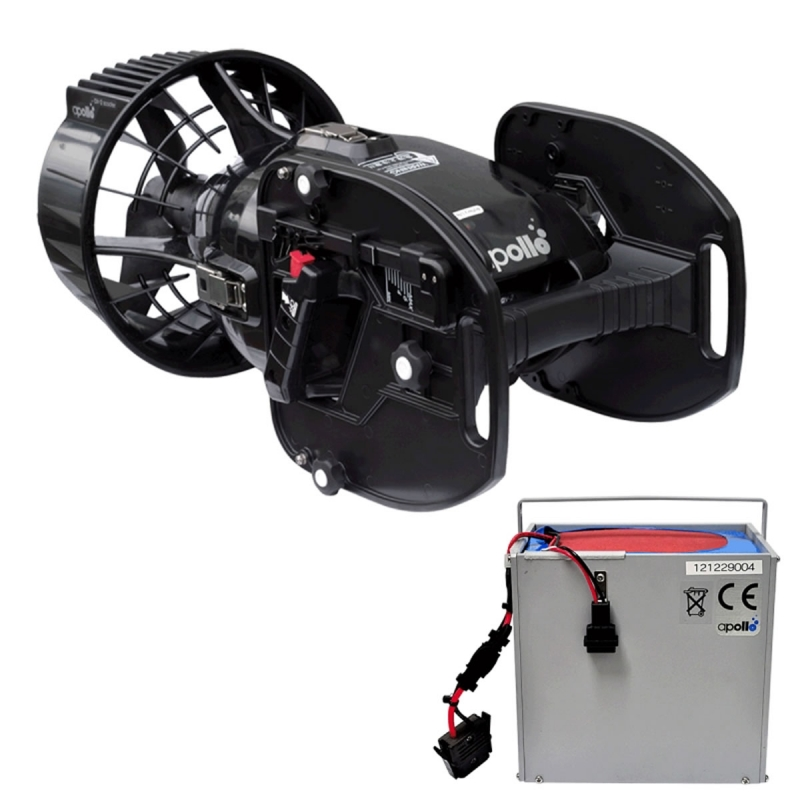

• Li Ion Battery 25.2V-27Ah
• Batteries are interchangeable but require different chargers
• Shock-resistant ABS resin body & DC Brushless motor
• Three speed variable pitch propeller
• Progresive acceleration system
• Standard acceleration system on/off
• Thermal switch protection automatically switches off if overheating occurs
• Approx 21.5kg on the surface / -1.3kg buoyancy underwater
• Dimensions: 720 x 340mm
• Rated to 90 meters
• Includes hand free saddle and multi-rider wings

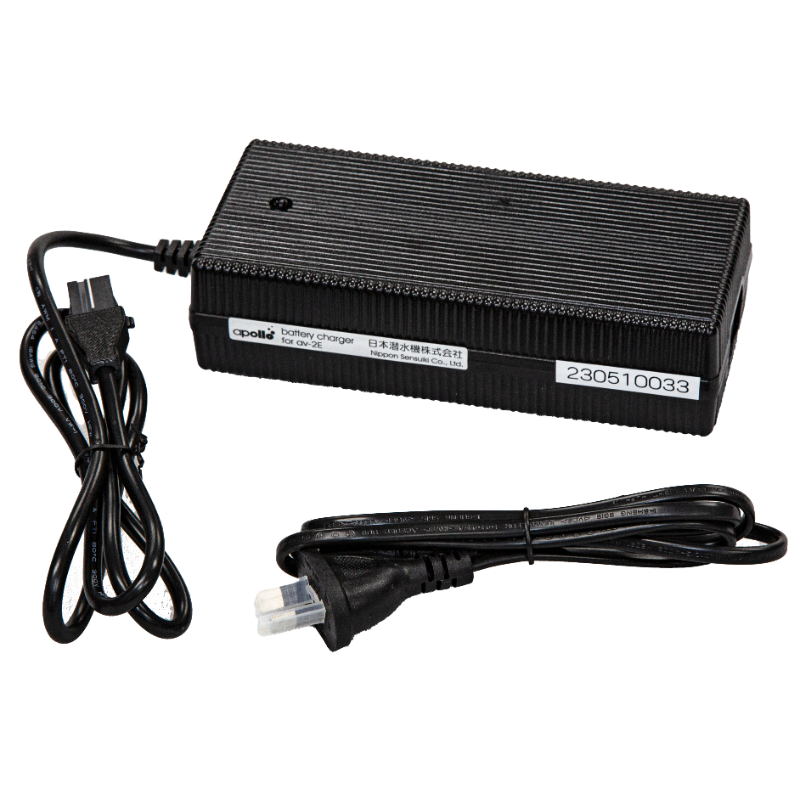

• Includes battery and charger
• Speed: 0 - 4 km/hour
• Up to 120 minutes continuous operation in hands free riding position
• Average Cruising Range: 7200 - 8000m
• Hands Free Riding Style
• Travel at top speed.
• Coast by your dive buddies twisting and turning like a dolphin. Literally dive circles around them.
• The hands free riding saddle helps you move like you were born to dive. steering is achieved through body positioning.
• A built-in arm extends trigger switch access forward for a more convenient placement.
• Both hands are free to extend like an airplane or maybe just to hold cameras, lights, and other accessories essential to your dive. More than just a fun ride.
• There are many practical reasons for saddle use.
• Use of an underwater vehicle in general can reduce your air consumption by up to 50%.

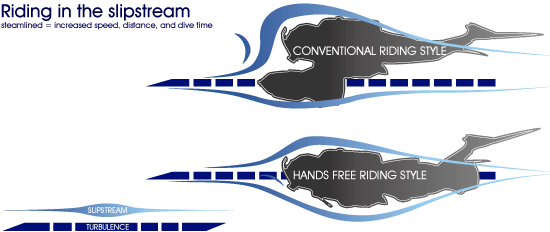

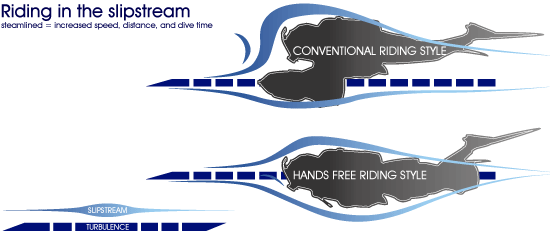

• The saddle places you and the vehicle in a more streamlined position.
• Being dragged long distances creates excessive muscular fatigue in the arms.
• Furthermore, riding behind a scooter creates resistance and reduces the efficiency of the propeller blades.
• Riding horizontally in front of the scooter streamlines the body and scooter, reducing drag and dramatically improving both speed and distance traveled on a single battery charge.
• In addition, both hands are free for carrying lights, cameras or other underwater equipment.

Wing

• By using the Wings it's now possible to pull 2 more divers with the av-2 EVOLUTION.
• The diver's different physiques when holding onto the wings have virtually no effect on the scooters performance.
• The speed and distance with 3 men diving are almost the same as using the scooter solo without a saddle.

3 Speed adjustment - Propeller pitch assembly

• Additionally it is possible to easily vary the propellers angle or pitch, which allows for even more fine-tuning of the scooters speed to the individual divers needs.
